Kuvaus

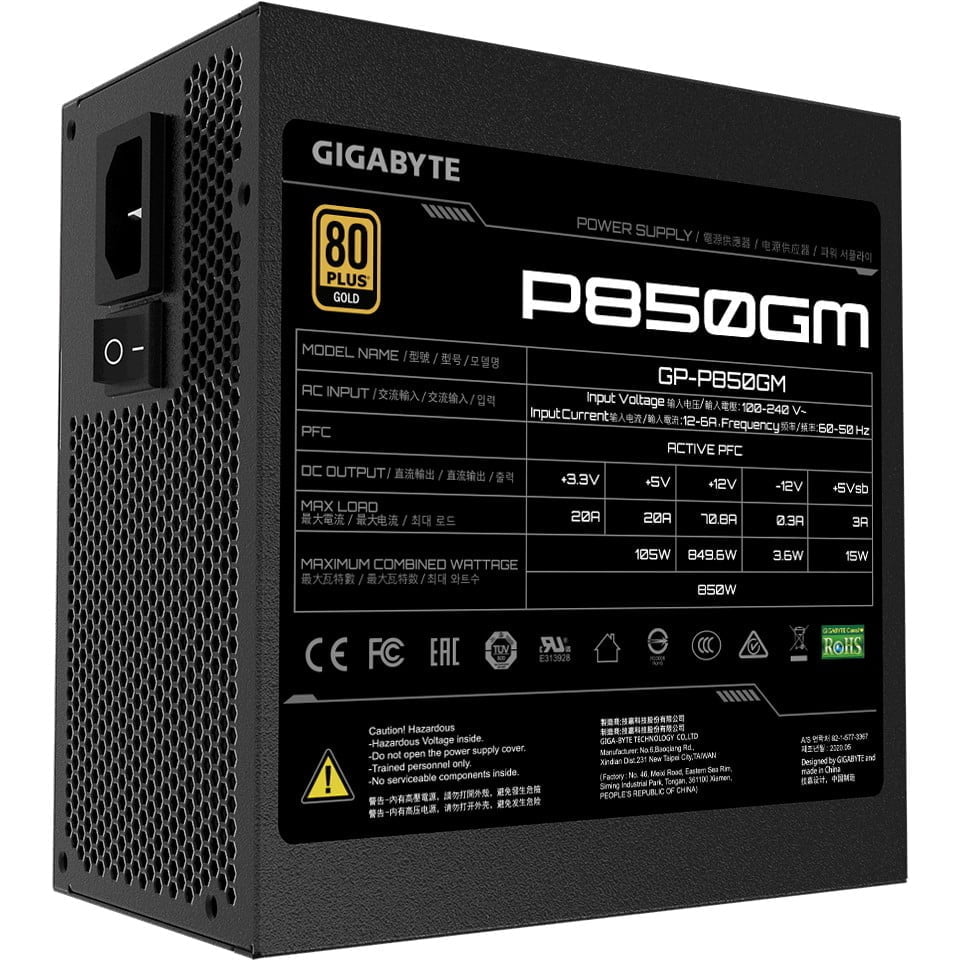

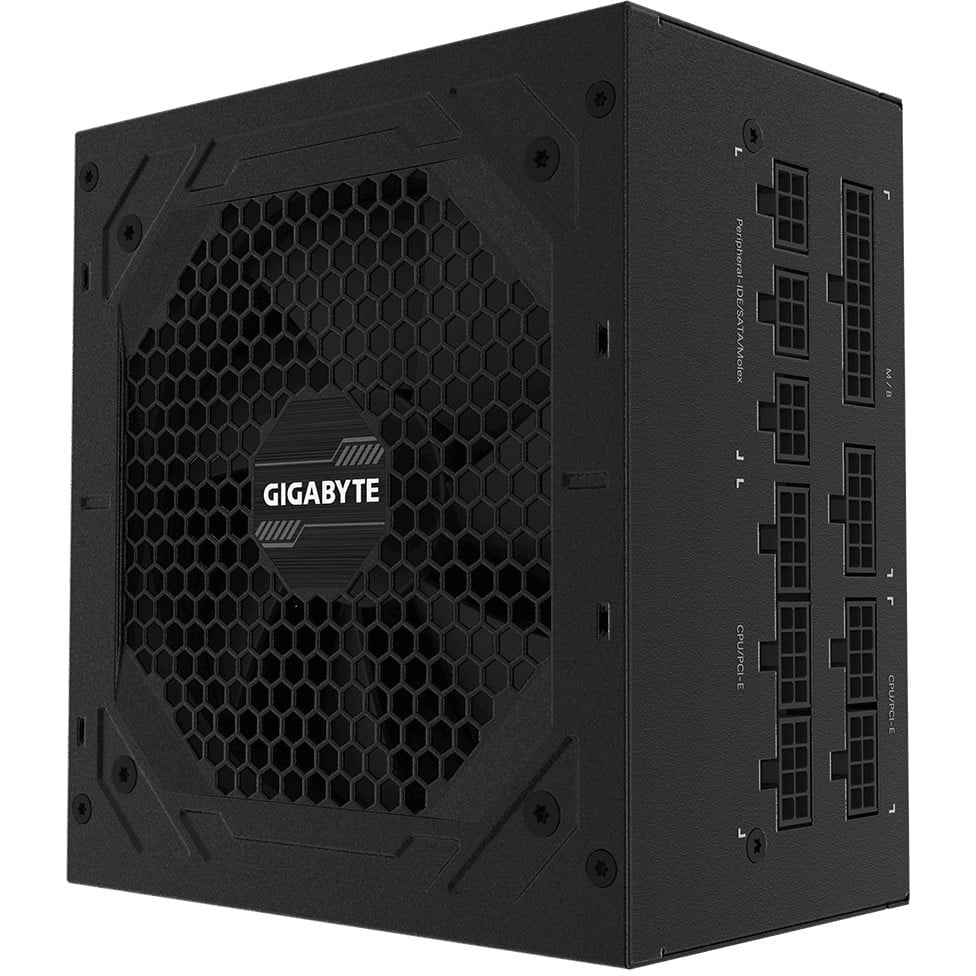

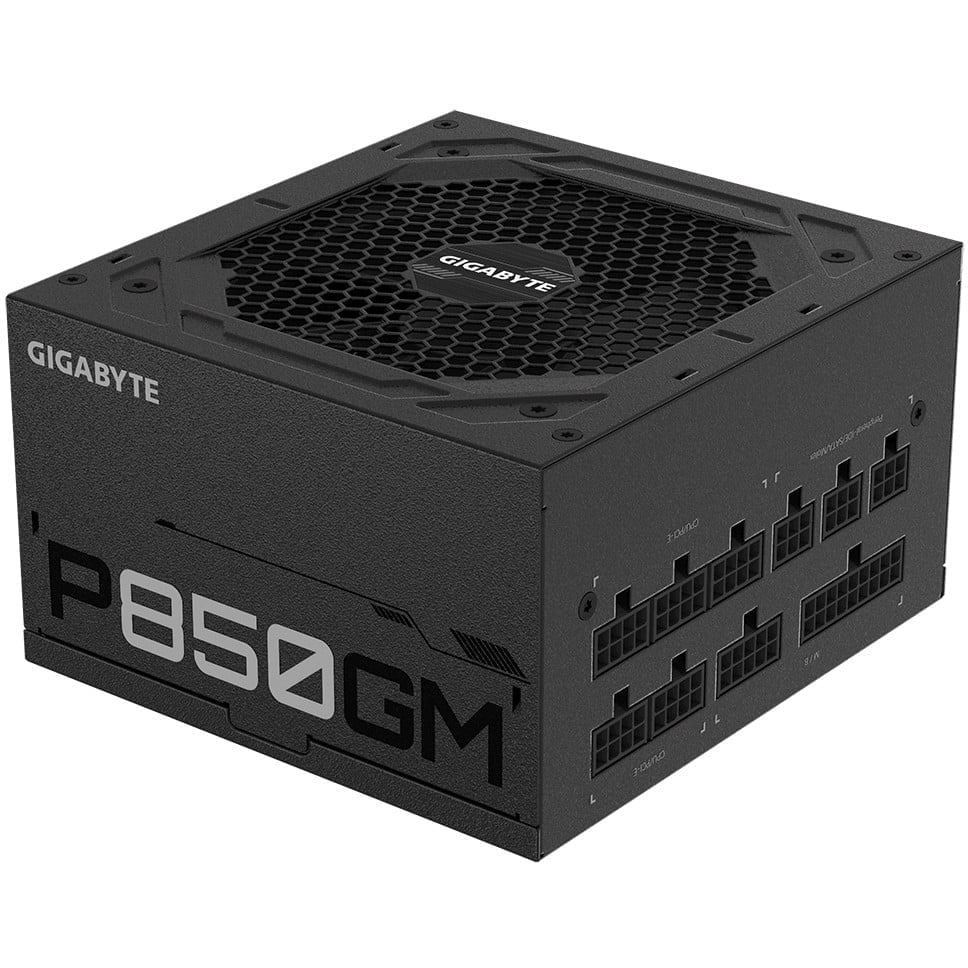

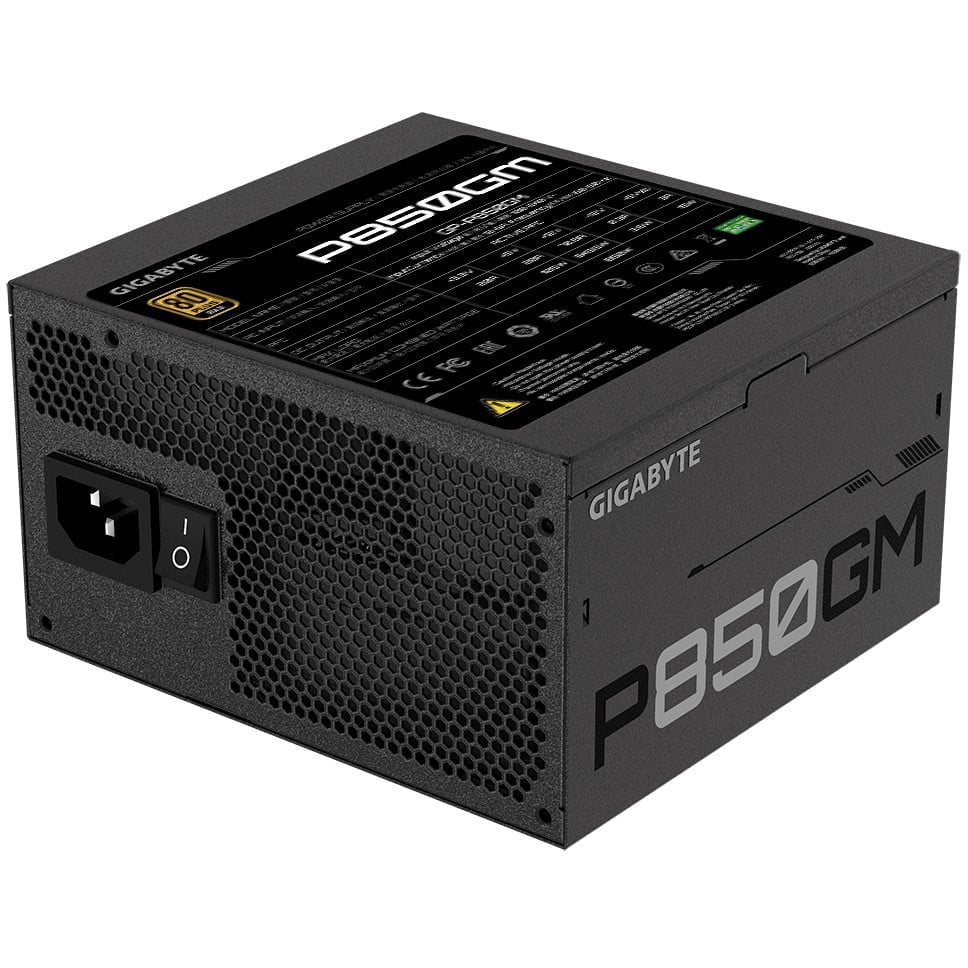

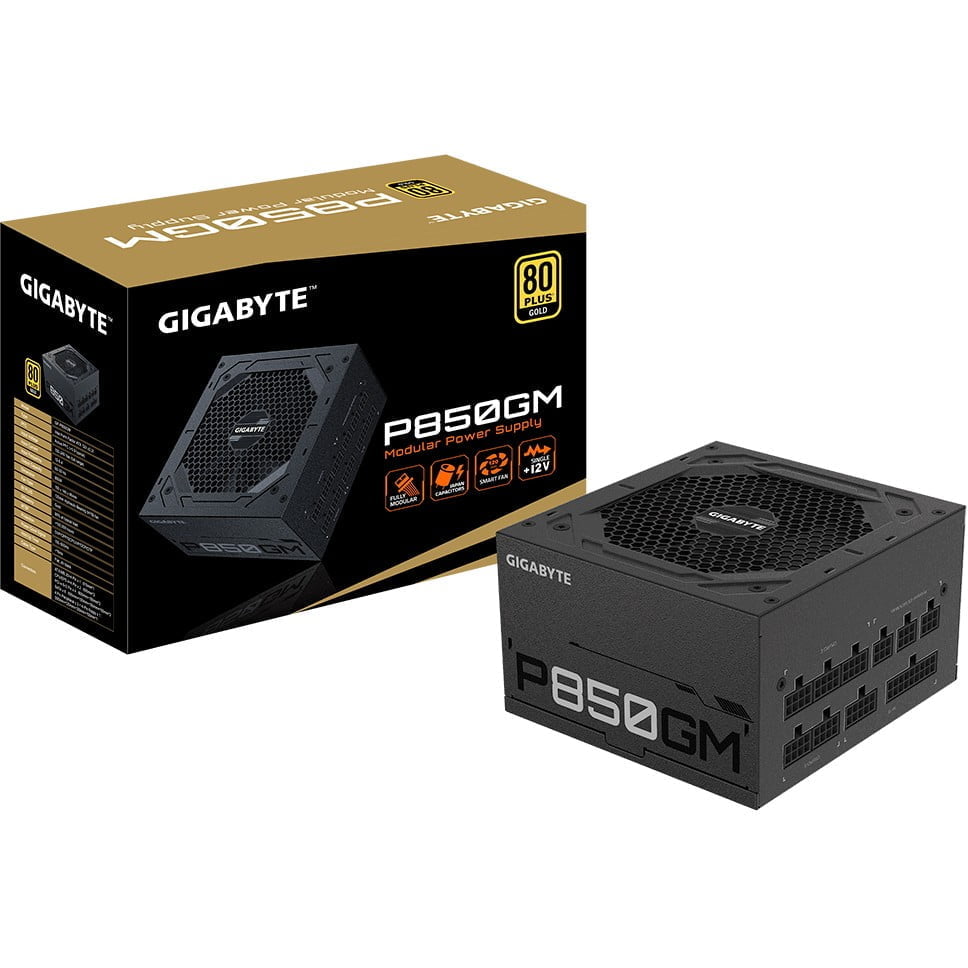

Gigabyte P850GM 80 Plus Gold 850W virtalähde
Tekniset tiedot:
- overall performance: 850W
- AC input voltage: 100 – 240V
- AC input frequency : 50/60Hz
- Maximum input current (at 110V): 12A
- Maximum input current (at 220V): 6 A
- power factor: 0.9
- Power Factor Correction Filter (PFC): active
- Combined Current (+3.3V): 120W
- Combined power (+12V): 846W
- Combined current (+5V): 120W
- Combined current (-12V): 3.6W
- Combined current (+5Vsb): 15 w
- Max. output current (+3.3V): 20A
- Max. output current (+12V): 70.5A
- Max output current (+5V): 20A
- Max. output current (-12V): 0.3A
- Max. output current (+5Vsb): 3 A
- holding time: 16ms
- efficiency: 90%
- energy conservation properties: Over current, overload, over voltage, over heat, short circuit, under voltage
- Power supply unit (PSU) form factor: ATX
- 80 plus certification: 80 PLUS Gold
- ATX version: 2.31
- Mean Time Between Failures (MTBF): 100000h

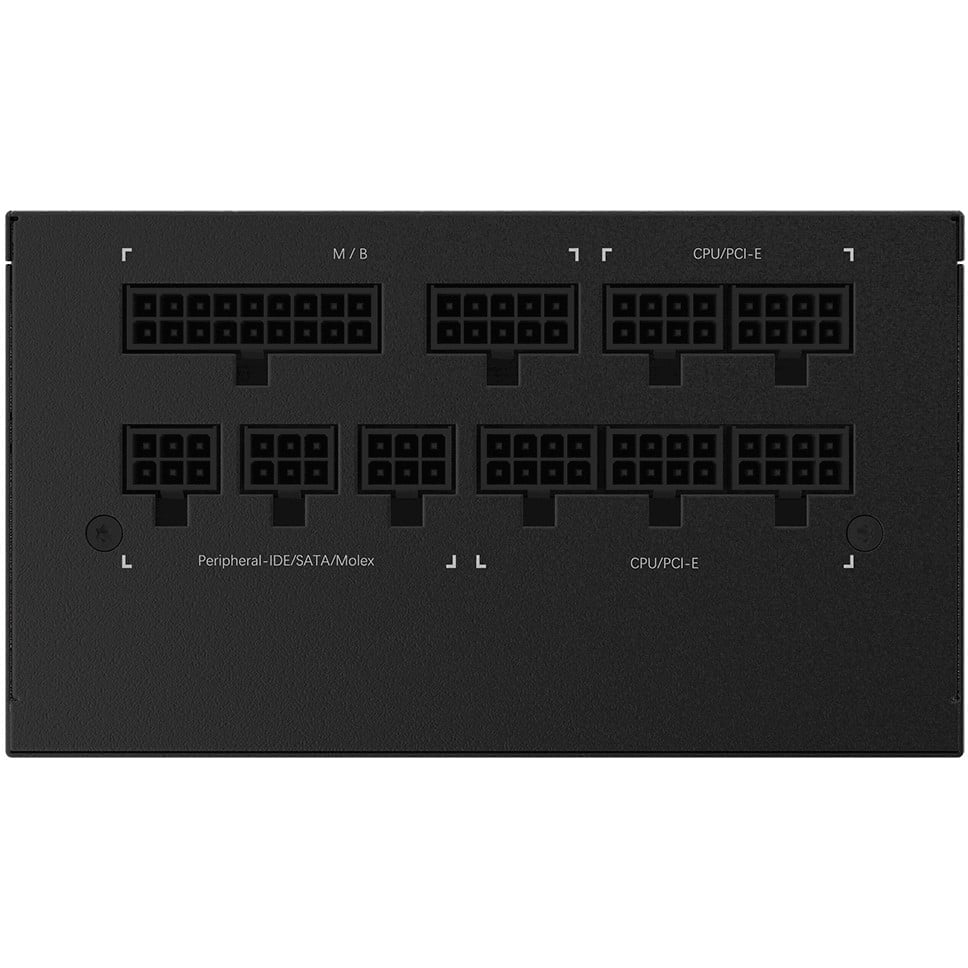

- Motherboard connector plug: 20+4 pin ATX
- Number of Molex connectors 4pin: 3
- Power cable length motherboard: 61 cm
- Number of SATA power connectors: 8
- SATA power cable length: 600, 750, 900mm
- Number of PCI Express power connectors 6+2pin: 4
- PCI Express power cord length: 75 cm
- CPU connector (4+4 pin)
- CPU performance cable length: 60 cm
- ATX power connector (20+4 pin)
- Floppy drive power connection: 2
- floppy drive connector
- Floppy drive cable length: 89 cm
- cable type: Modular
- product color: black
- cooling: active

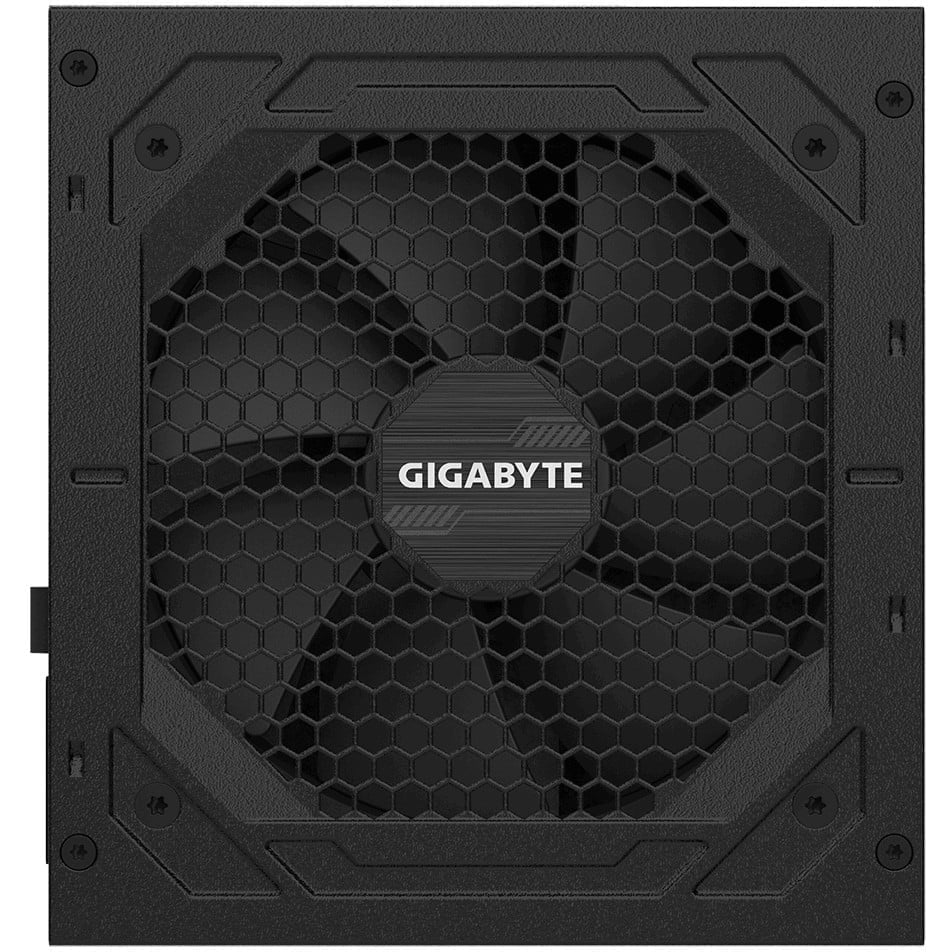

- fan diameter: 12 cm
- number of fans: 1 fan
- fan placement: Above
- ON/OFF switch
