Gigabyte P1000GM 1000W modulaarinen virtalähde
Ominaisuudet:
Perfomance
- overall performance 1000W
- AC input voltage 100 – 240V
- AC input frequency 50/60Hz
- input current 6.5 – 15A
- Power Factor Correction Filter (PFC) active
- Combined Current (+3.3V) 125W
- Combined power (+12V) 999.6W
- Combined current (+5V) 125W
- Combined current (-12V) 3.6W
- Combined current (+5Vsb) 15 w
- Max. output current (+3.3V) 25A
- Max. output current (+12V) 83.3A
- Max output current (+5V) 25A
- Max. output current (-12V) 0.3A
- Max. output current (+5Vsb) 3A
- holding time 16ms
- efficiency 90%
- energy conservation properties: Over current, overload, over voltage, short circuit, under voltage
Design:
- Product color Black
- Fan diameter 12 cm
- Number of fans 1 fan
- Fan placement Above
- ON/OFF switch yes

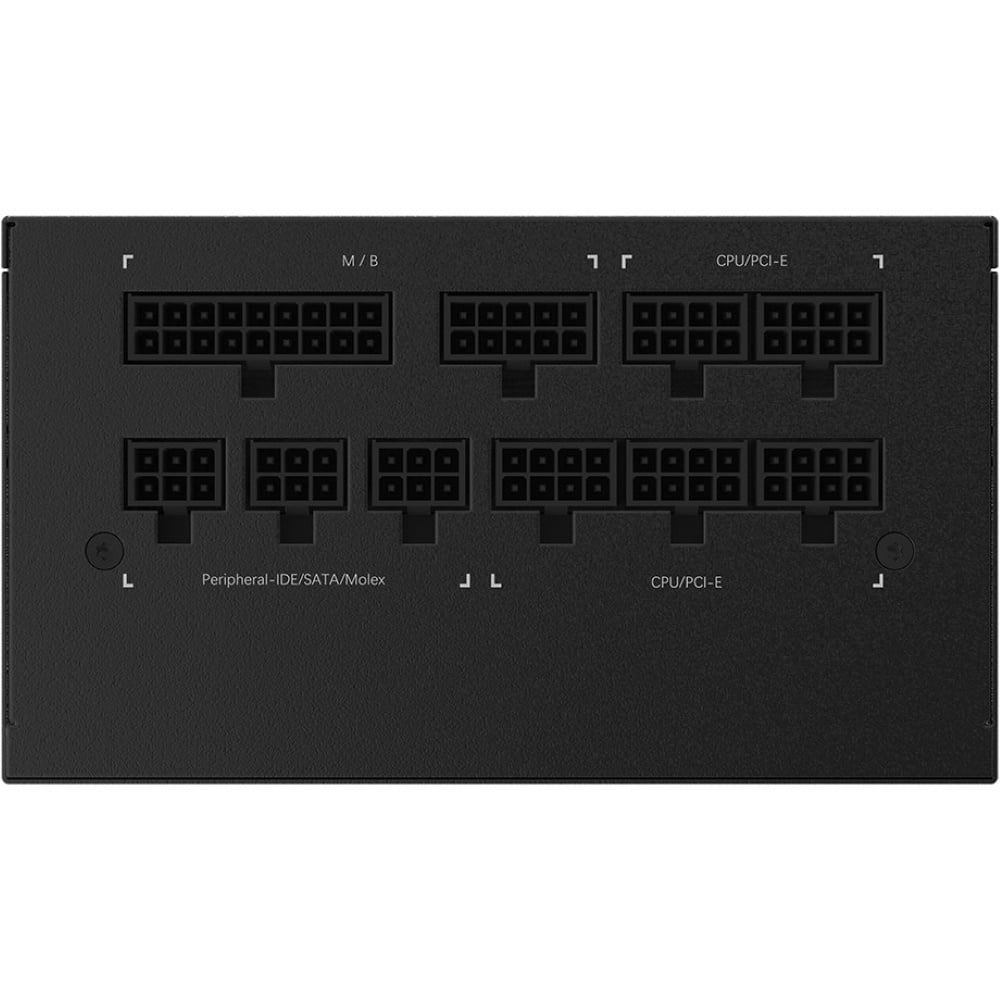

Connections and interfaces
- Motherboard connector plug 20+4 pin ATX
- Number of Molex connectors 4pin 3
- Power cable length motherboard 61 cm
- Number of SATA power connectors 8th
- SATA power cable length 1050,600,750,900 mm
- Peripheral (Molex) power cord length 500,620,740 mm
- EPS power connector (4+4 pin) yes
- Number of PCI Express power connectors 6+2pin 6
- PCI Express power cord length 75 cm
- CPU connector (4+4 pin) yes
- CPU performance cable length 60 cm
- ATX power connector (20+4 pin) yes
- Floppy drive power connection 1
- Cable type Modular
Services:
- Purpose personal computer
- 80 plus certification 80 PLUS Gold
- ATX version 2.31
- Storage type HDB
- Mean Time Between Failures (MTBF) 100000 h
- Weight and dimensions:
- Broad 140mm
- Depth 150mm
- Height 86mm
Packaging data:
- Supplied cables CPU, PCIe, peripherals (Molex), SATA
