Kuvaus

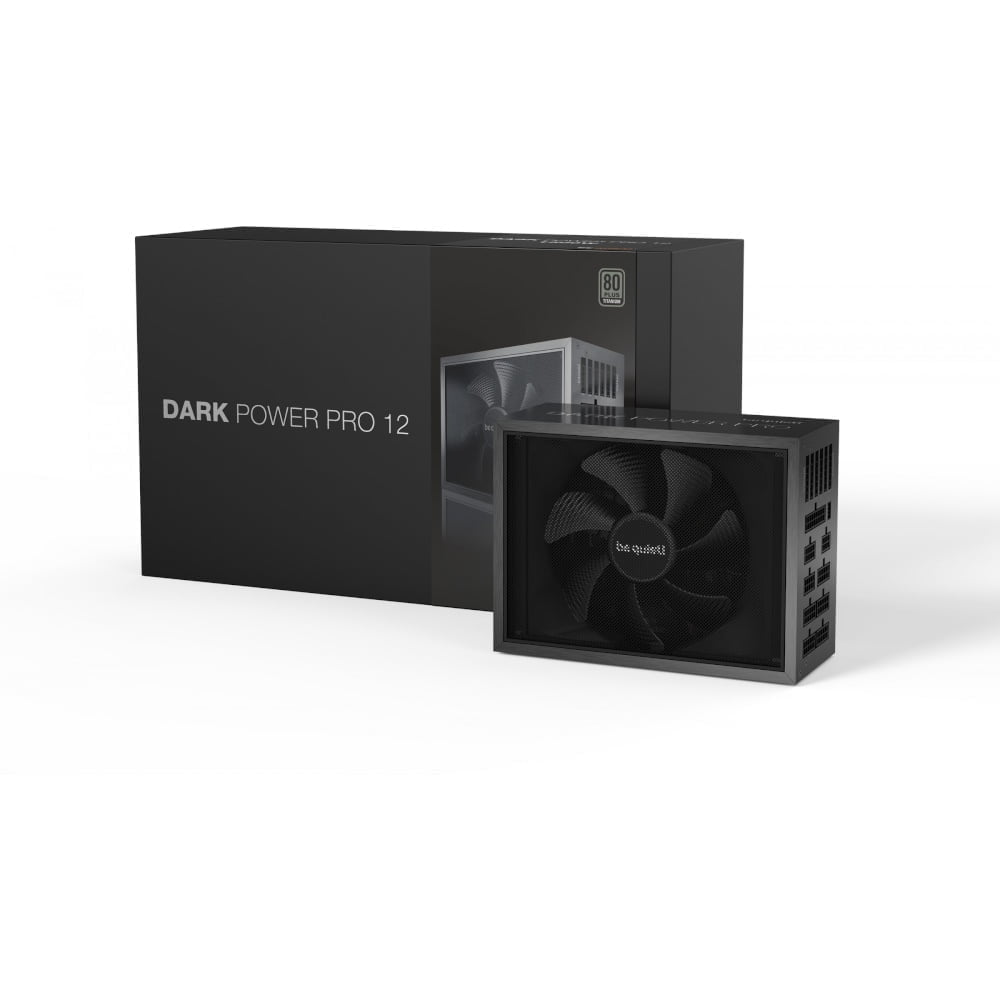

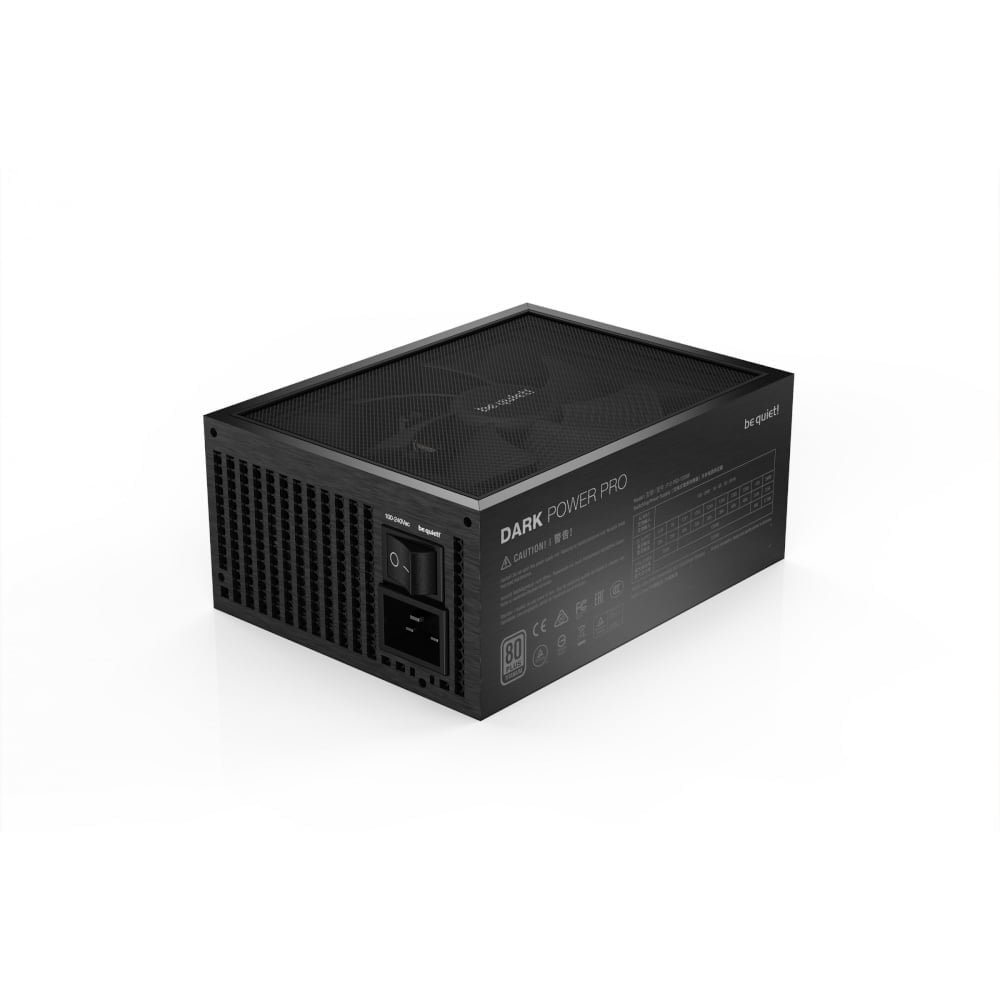

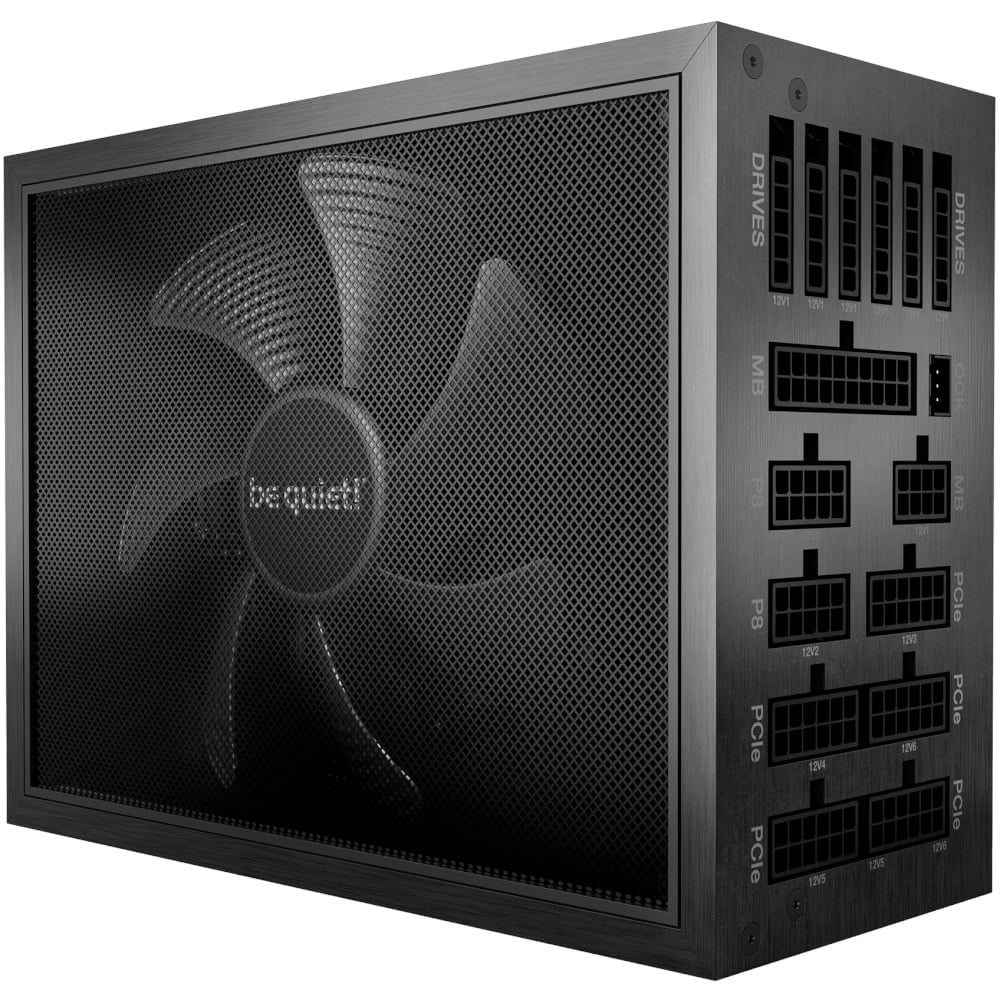

Be Quiet Dark Power Pro 12 80+Titan 1200W virtalähde
- be quiet! Dark Power Pro 12 80+Titan 1200W
- Virtalähde (sisäinen)
- ATX12V 2.51/ EPS12V 2.92 – 80 PLUS titanium
- Vaihtovirta 100-240 V
- 1200 watt – aktiivinen PFC
- Väri: Musta
Tekniset tiedot:
Performance:
overall performance 1200W
AC input voltage 100 – 240V
peak current 1300W
AC input frequency 50/60Hz
input current 16 – 8 A
Maximum input current (at 110V) 16A
Maximum input current (at 220V) 8 A
power factor 0.99
Power Factor Correction Filter (PFC) Active
Combined Current (+3.3V) 150W
Combined power (+12V) 1200W
Combined current (+5V) 150W
Combined current (-12V) 6 W
Combined current (+5Vsb) 17.5W
Max. output current (+3.3V) 25A
Max. output current (+12V) 100A
Max. output current (+12V1) 35A
Max output current (+12V2) 35A
Max. output current (+12V3) 35A
Max. output current (+12V4) 35A
Max output current (+5V) 25A
Max. output current (-12V) 0.5A
Max. output current (+5Vsb) 3.5A
holding time 18.67ms
efficiency 94.7%
energy conservation properties: Over current, overload, over voltage, over heat, short circuit, under voltage
Services:
Purpose personal computer
Power supply unit (PSU) form factor ATX
80 plus certification 80 PLUS titanium
ATX version 2.51
EPS version 2.92

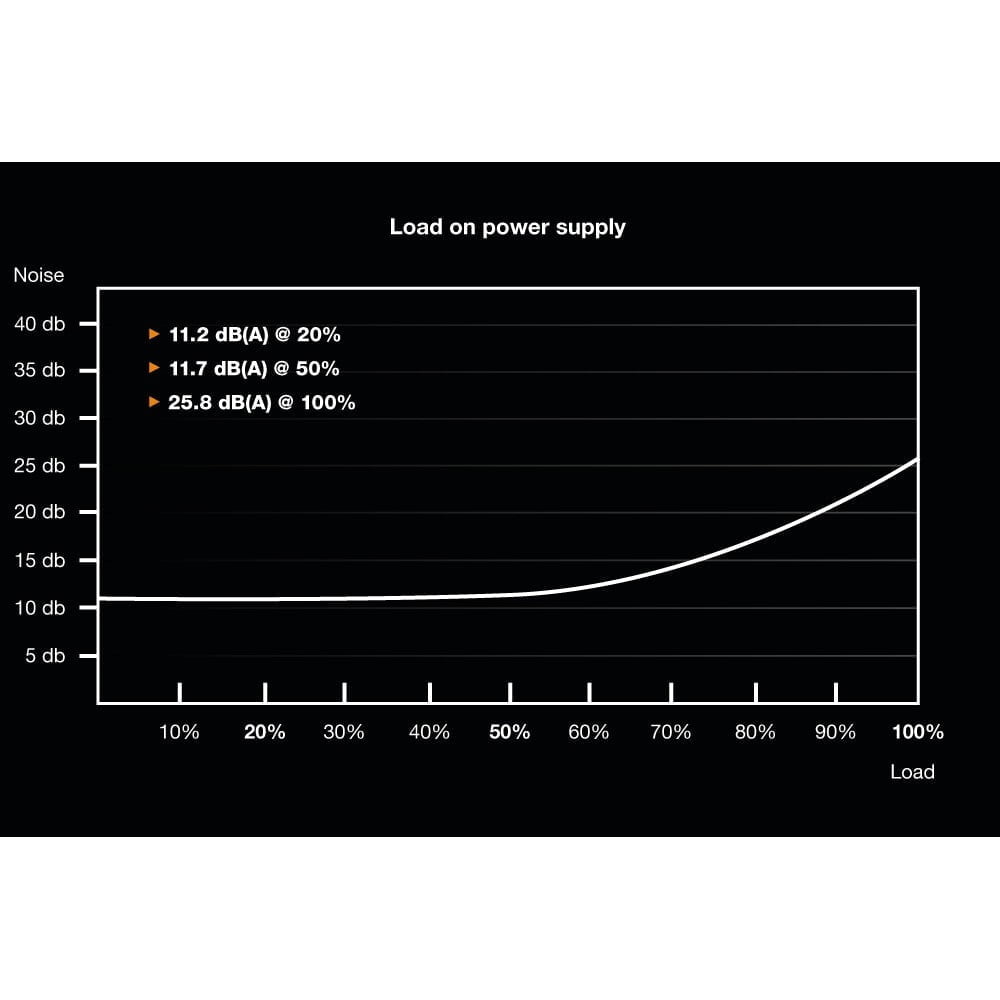

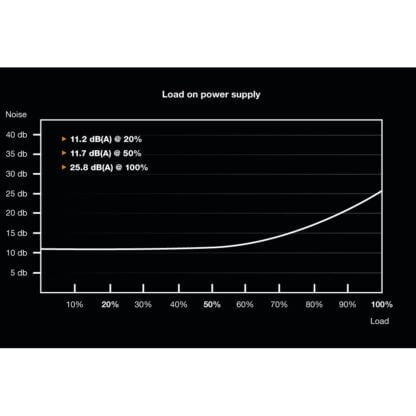

noise level 25.8dB
storage type FDB
Mean Time Between Failures (MTBF) 100000h
certification ERP, WEEE
Weight and dimensions:
Broad 150mm
depth 200mm
Height 86mm
Weight 2.41kg

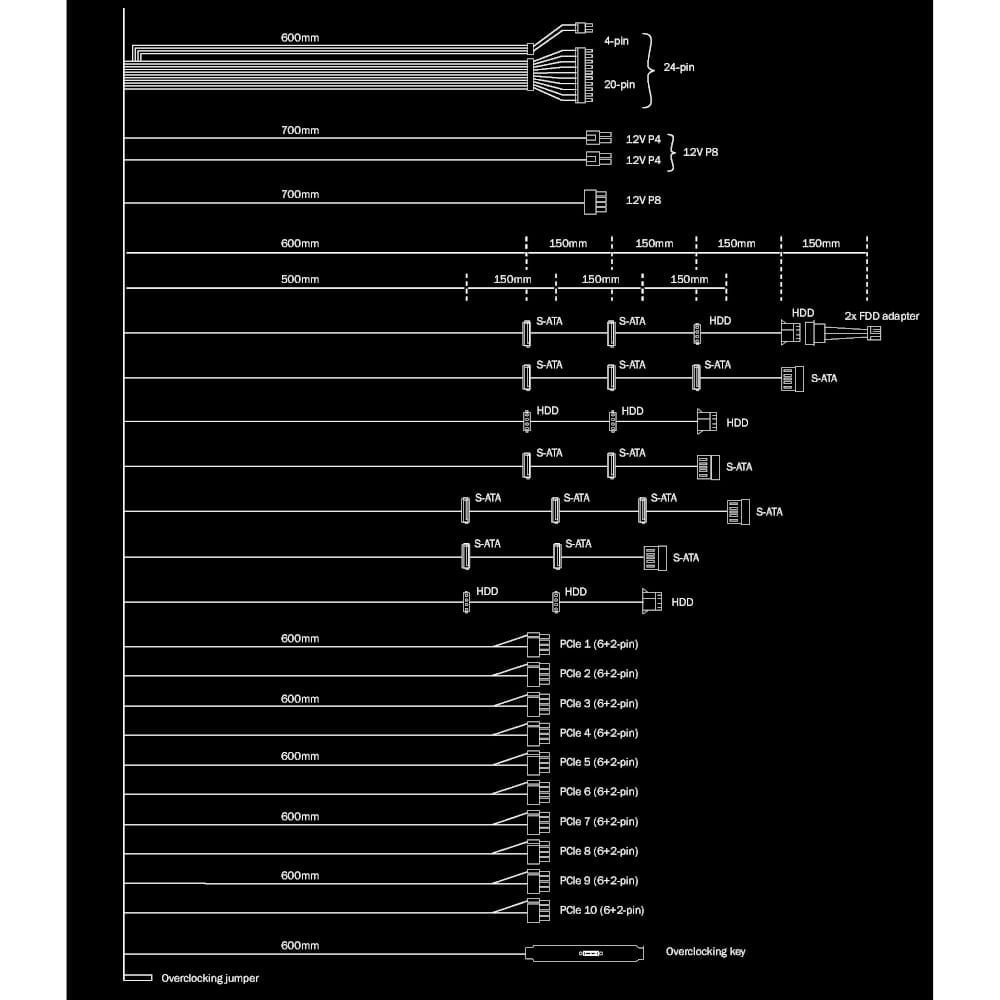

Connections and interfaces:
Motherboard connector plug 20+4 pin ATX
Number of Molex connectors 4pin 8th
Power cable length motherboard 60 cm
Number of SATA power connectors 16
SATA power cable length 500,550,600,650,750,800,900mm
Peripheral (Molex) power cord length 600,750,900mm
EPS power connector (8-pin) yes
EPS power connector (4+4 pin) yes
Number of PCI Express power connectors 6+2pin 10
PCI Express power cord length 60 cm
ATX power connector (20+4 pin) yes
Floppy drive power connection 2
floppy drive connector yes
Floppy drive cable length 120 cm

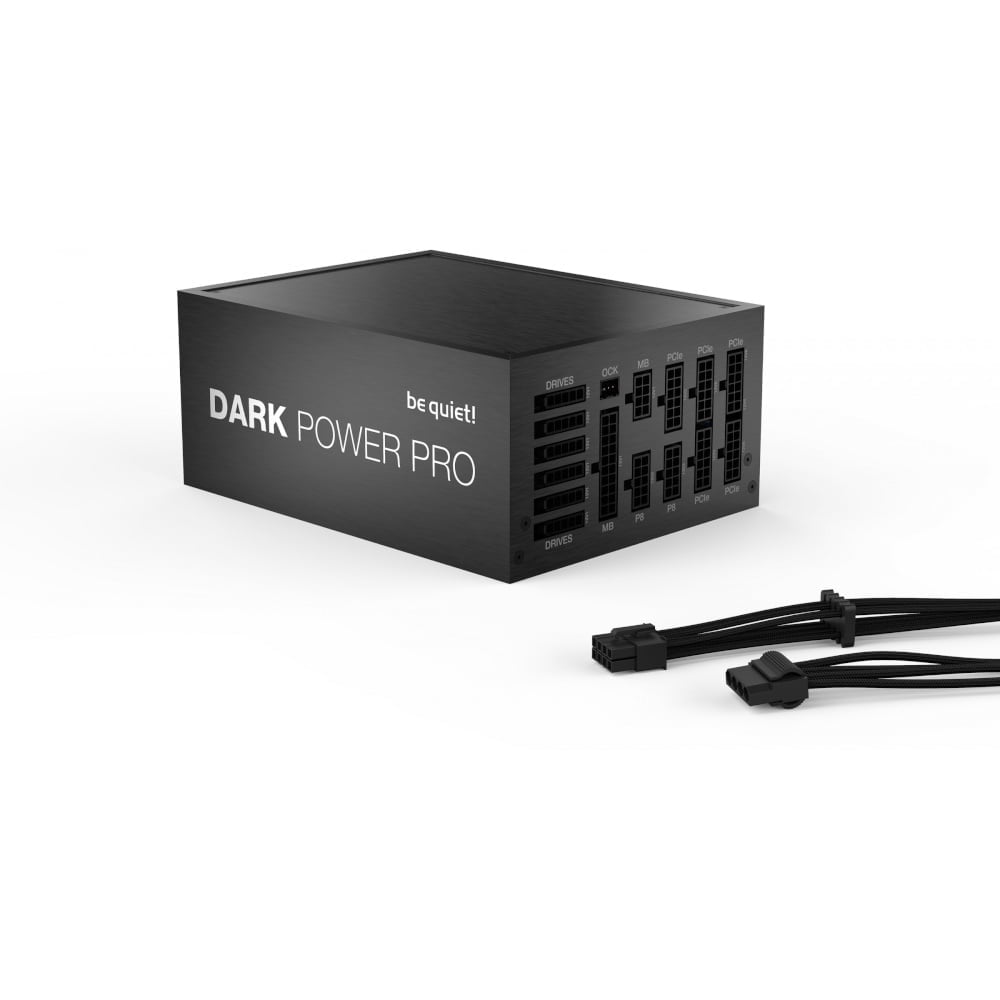

cable type Modular
Design:
product color Black
cooling Active

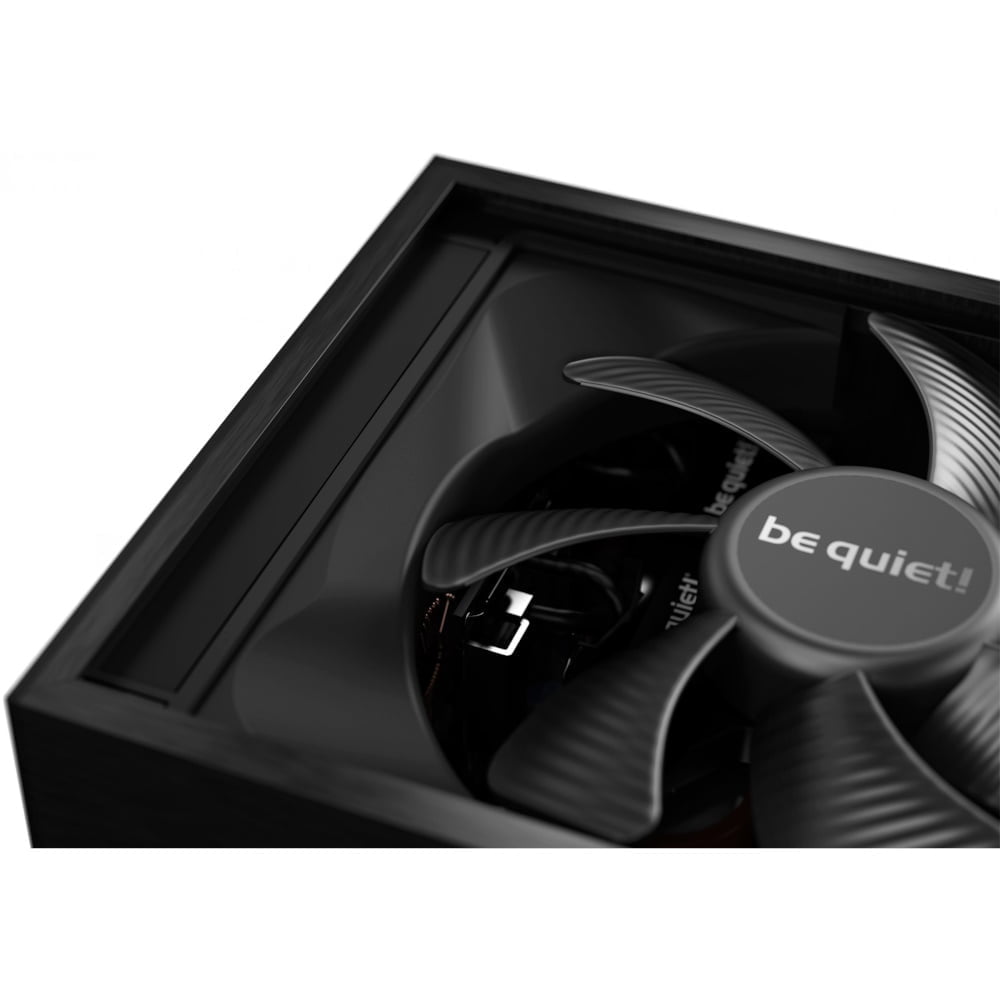

fan diameter 13.5 cm
number of fans 1 fan
ON/OFF switch yes
Operating conditions:
operating temperatur 0 – 50 °C
Scope of delivery:
Supplied cables AC, CPU, PCIe, SATA
Technical details:
sustainability certificates RoHS, ENERGY STAR
